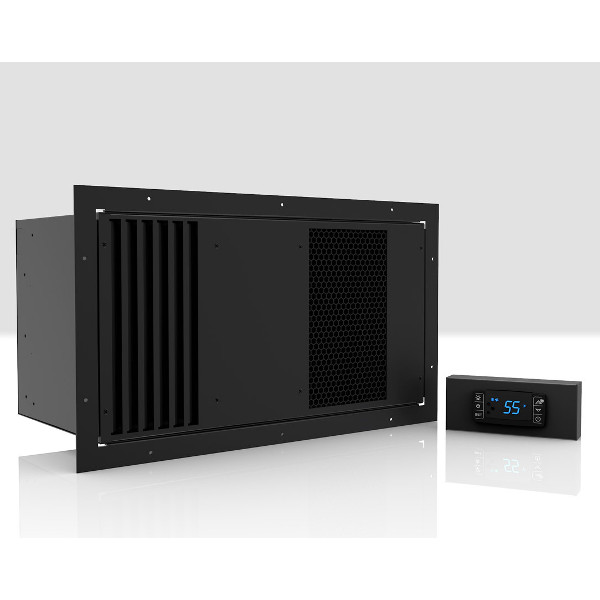

WhisperKool Mini Ceiling Mount Wine Cellar Cooler
WhisperKool Mini Ceiling Mount Wine Cellar Cooler
Cooling a wine cellar adds two very imortant variables to this process, humidity and temperature consistancy. Our systems keep these two variables in check by cooling slowly. We have spent thousands of hours researching and developing the ideal system design and componentry for slow cooling processes.
The unique difference between the WhisperKOOL systems and traditional air conditioners is the maintenance of well conditioned humidity. Traditional air conditioning units are designed to cool quickly: as a result, humidity is removed below acceptable levels which can lend to dried out corks and oxidized wine. WhisperKOOL achieves the optimal results by cooling the air slowly, cycling down the temperature while maintaining humidity between 50% and 70% in a properly prepared wine cellar.
Utilizing our ceiling mounted evaporator has many benefits.
Wine Cellar Cooler Features:
- Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cools and disperses the air throughout the environment.
- Allows for maximum racking space.

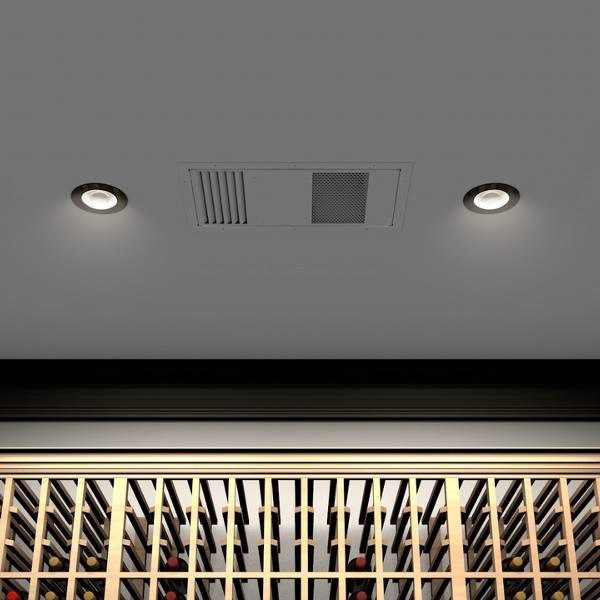

- Is virtually invisible in the cellar.
- Designed with the highest quality, professional grade parts for longevity and performance.
- Designed for ease of installation and accessibility.
- Includes a condensate pump system.
- Smooth, black primer finish, excellent for painting and color matching.
- Available with our active humidity option.
- Low ambient control.
- Grille of unit comes with a smooth, primer finish
BTUh Rating:
There are circumstances in which a cellar design may require a larger unit due to existing restrictions. Building materials such as glass, stone, concrete, etc. do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for design limitations.
* Please email us your cellar dimensions and how much glass (if any) are on the walls. By selecting the proper cooling unit for your application. Undersized cooling units can lead to premature failure and/or prevent the system from reaching the desired set temperature. As a result, they are not covered under warranty.
*Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars.
Note: The systems do not include a line set.
Cold Weather Start Kit:
WhisperKOOL is proud to present our cold weather start kit. This kit was designed exclusively for our split systems where the condensing unit will be installed in extremely cold environments. Our split systems are designed to be adaptable to almost any install, as the condensing unit can be located in a variety of locations such as a mechanical room, basement, back yard, or even a rooftop. Our split systems were designed to operate with the condensing unit exposed to temperatures between 20°F and 110°F. However, there are some areas in the country that may drop below 20°F. Due to these conditions WhisperKOOL designed the Cold Weather Start Kit.
So, when the outside temperatures drop, the pressure in the system drops as well. This presents a challenge because our systems operate using a pump down cycle and a low-pressure switch to turn the compressor on and off. However when the temperature drops below 20°F, the pressure in the system is too low to start the compressor. The use of an electronic bypass is needed to start the compressor and temperature controlled heaters installed on the receiver are needed to raise the pressure in the system to optimal levels.
The Cold Weather Start Kit will bypass the low-pressure switch on startup and keep the pressure in the system high enough to operate correctly for environments as cold as -15°F.
It is important that the cooling system stays operational during cold weather conditions, as heating the house using the central HVAC system will indirectly increase the temperature of the wine cellar. This kit will ensure that the cooling system will continue to operate efficiently in cold weather environments to maintain an optimal wine storage temperature.
24V Thermostat Conversion Kit
Tap into the latest technology to manage and monitor your wine cellar environment with WhisperKOOL.
Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems**.
Utilize the industry leading technology from major manufacturers to monitor the environment of your cellar. (see individual thermostat manufactures features and benefits for details.)
- Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet or laptop.
- Monitor temperature and humidity through smart phones.
- Monitor run time and energy usage.
- Set alarm notifications
- View your cellar conditions from your cellular device.
The use of the 24-volt thermostat conversion kit eliminates the thermostat normally included with the system and allows your contractor to select, purchase and install the thermostat technology of your choice, including but not limited to:
- Nest
- Ecobee.
- Honeywell.
Note:
- Not utilizing the thermostat from WhisperKOOL also eliminates the use of the bottle probe.
- WhisperKOOL does not provide SMART thermostats. Those must be purchased separately.
- WhisperKOOL customer service staff does not provide technical support for the customers selected thermostat.
**The 24-volt Thermostat conversion kit is currently available as an option for all Platinum and Ceiling Mount Split System models.**
Option Details:
Exterior Housing:
When installed outdoors, the exterior housing protects the condenser portion of the split system from the elements.
Specifications:
- Cellar Size: 500 cu. ft (Each wine cellar is unique and has speci c cooling requirements . Heat load calculations should always be performed prior to selecting a cooling unit.)
-
BTUh: w/90 °F: 1730
-
CFM: 107
- dBA: 52 dBA
- Dimensions: 22.05" L x 11.08" H x 11.34" D
-
Refrigerant: R-134a
-
HP: 1/6
-
Voltage Rating: 115V
- Weight:
- Evaporator: 40.6 lbs
- Condenser: 40.4 lbs
- AMPS (starting/running):
- Evaporator: 2/1
- Condenser: 11/3.81
- Lineset:
- Suction: 3/8 inches outside diameter
- Liquid: 1/4 inches outside diameter
- Drainline: 1/4 inches interior diameter clear plastic tubing
- Installation:
- Evaporator is installed in the cellar
- Condenser is installed up to 100 line ft. away.
- Temp. Delta: 55°F temperature differential
- Thermostat : Digital control display with 50-ft. cable and 50-ft. liquid-temperature-measuring bottle probe
-
Temp. Delta:
- Manufacturer's Warranty: 2 year limited warranty parts and labor
New! Active Humidity Option:
Our new Active Humidity feature carefully measures the volume of moisture needed to raise the relative humidity within the cellar to the desired level. This design utilizes Intermittent Mist Injection Technology which eliminates the use of pads or filters that can mold over time.
Easy to install and effortless in use, simply connect a soft water source to the unit, install the humidistat and you are ready to go.
This optional integrated system must be specified at the time of ordering of the unit.
Active Humidity Features:
- Maintains optimal humidity levels when relative humidity level drops.
- Intermittent Mist Injection Technology - No pads or filters which can mold over time.
- Included humidistat displays and monitors humidity levels.
*Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars.
Note: The systems do not include a line set.
- Be sure to check out our entire selection of WhisperKOOL products.
Specs/Warranty:
Manufacturer's Warranty A limited 2-year/5-year compressor warranty is offered with all self-contained cooling units at their date of purchase (excluding the Phantom series). A limited 2-year warranty is offered with all split systems. This warranty do
Manufacturer Part Number: Mini Ceiling Mount
Custom Stock Status: Out of Stock
Return Policy: All Sales Final
