WhisperKool Water Cooled Platinum Split 4000WC Cellar Cooling Unit

WhisperKool Water Cooled Platinum Split 4000WC Cellar Cooling Unit

(0 reviews)
SKU#: WC4000

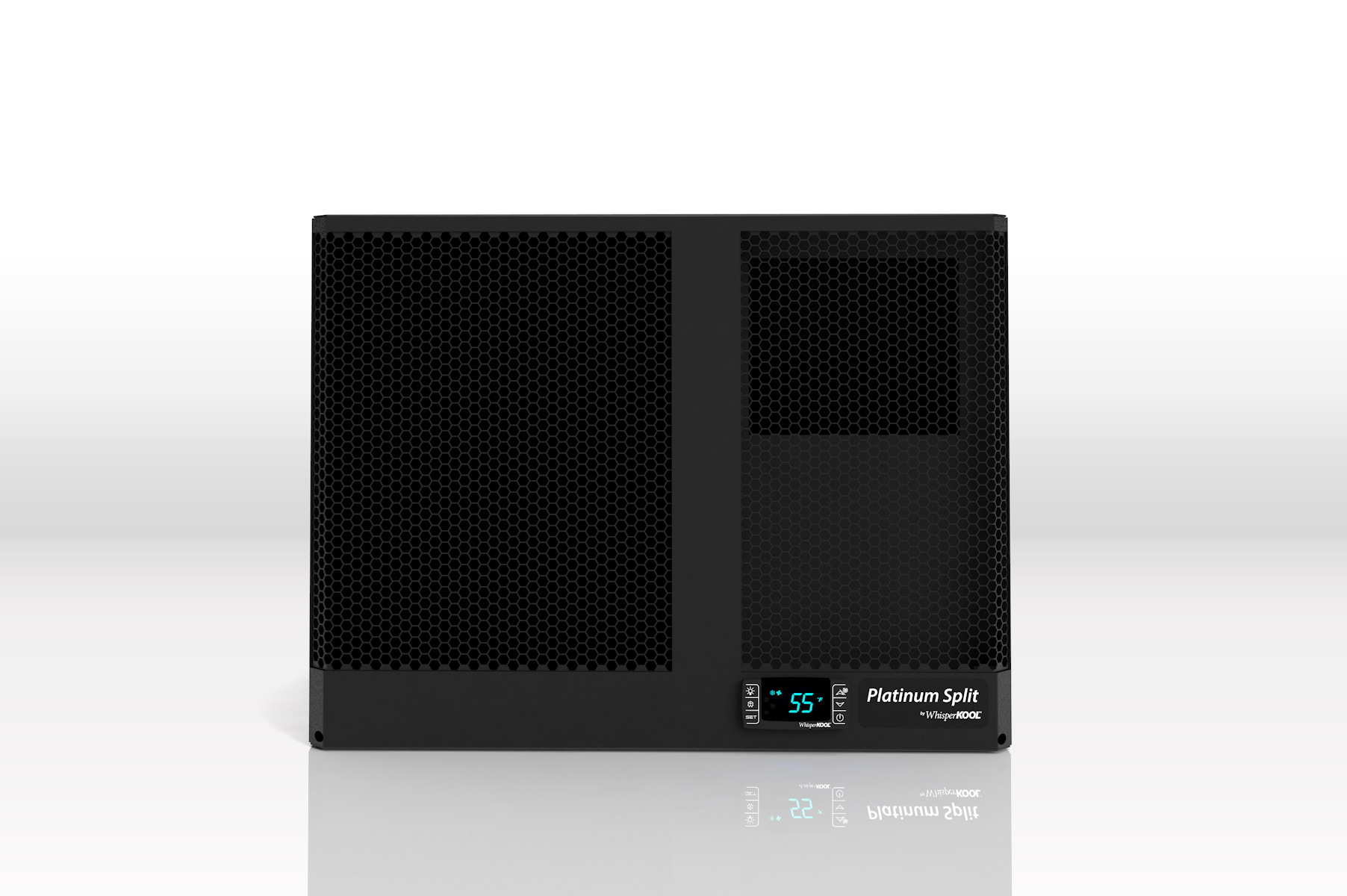

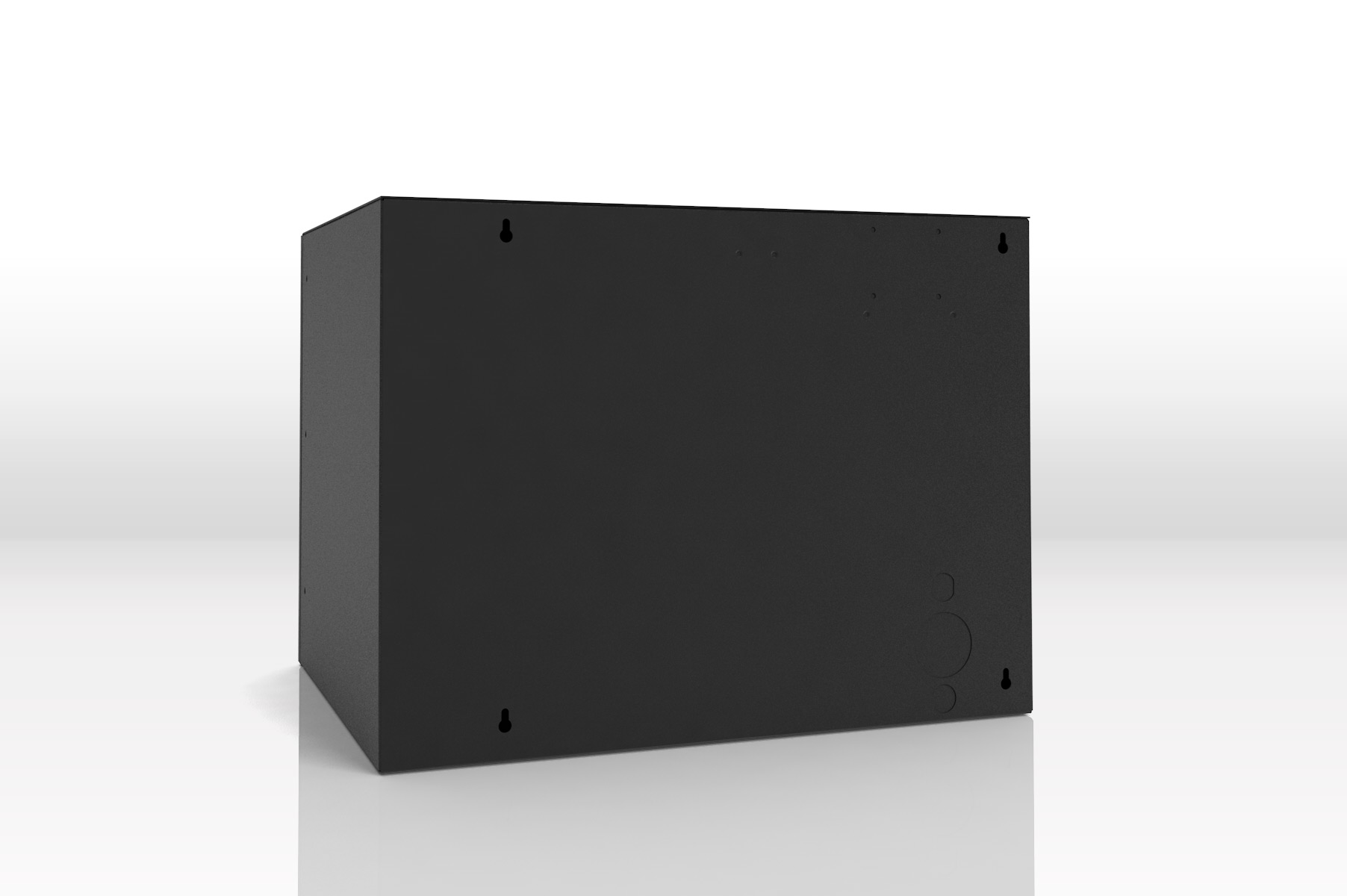

The housing for the Platinum series split system evaporators has been fully redesigned. While the internal components have proven to be reliable and effective, we have designed new housing systems for improved installation and accessibility. The previous design was a little challenging in terms of mounting and accessing the components for installation. It required the removal of the top or side panel. When racking was installed around the unit, it was difficult to gain access for service or maintenance.

The new design makes the units easier to install by gaining access to the system from the front of the unit where removable grills have been installed. This greatly improves the ability to install the system and access it for maintenance. Please note that the dimensions have changed slightly. Review the specification section when planning your install to account for the dimensional change.

Key Features: Requires no airflow across its condenser, resulting in a super-quiet operation. Engery saving mode that regulates water flow & compressor power when temperature is satisfied. Superior humidity control manages moisture for optimal wine cellar conditions. Liquid bottle probe standard at no extra cost, to gauge and maintain precise temperature control. Advanced electronic display to exchange information & to make adjustments as needed. Heavy gauged, weather resistant galvanized steel construction for long lasting protection against corrosion. Utilizes Advanced System Protection technology with adjustable humidity control, energy saving modes, quick chill mode, and anti-frost features. Physically the same size as our air-cooled version. Intelligently designed to blend seamlessly within cellar racking. Maintains 55° and 50-70% relative humidity to cellars up to 1000 cu. ft. Pump down system for longer compressor life. Remote Included BTUh Rating: There are circumstances in which a cellar design may require a larger unit due to some existing design restrictions. There are several factors such as glass, stone, concrete, etc. which will seem adequate but do not offer the insulation capacity required to maintain the optimum environment. We recommend purchasing a unit with a larger capacity to compensate for the design limitations. Please utilizing our Cellar Wizard in order to ensure you are selecting the proper cooling unit for your application. Under sized cooling units can lead to pre-mature failure and/or prevent the system from reaching the desired set temperature. As a result they are not covered under warranty. *Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars. Note: The systems do not include a line set. Option Details: The Exterior Housing protects the condenser portion of the split system from the elements when installed outdoors. Specifications: Cellar Size: 500 cu. fit to 1000 cu. ft dBA: Evaporator: 54 Decibels Condenser: 65 Decibels Dimensions: Evaporator: 20.5"W x 15.5"H x 16"D Condenser: 12"W x 13.5"H x 18"D Weight: Evaporator: 56lbs Condenser: 65lbs AMPS (starting/running): Evaporator: 2/1 Condenser: 18/9 Installation: Evaporator is installed in the cellar, Condenser is installed up to 100 line ft. away. Temp. Delta: 55°F temperature differential Thermostat: Digital Control Display Warranty: A limited 2-year parts and labor

Manufacturer: WhisperKOOL

Specs/Warranty: Manufacturer's WarrantyA limited 2-year/5-year compressor warranty is offered with all self-contained cooling units at their date of purchase. A limited 2-year warranty is offered with all split systems. This warranty does not start or become valid

Manufacturer Part Number: Water Cooled Platinum Split 4000

Custom Stock Status: Made to Order
