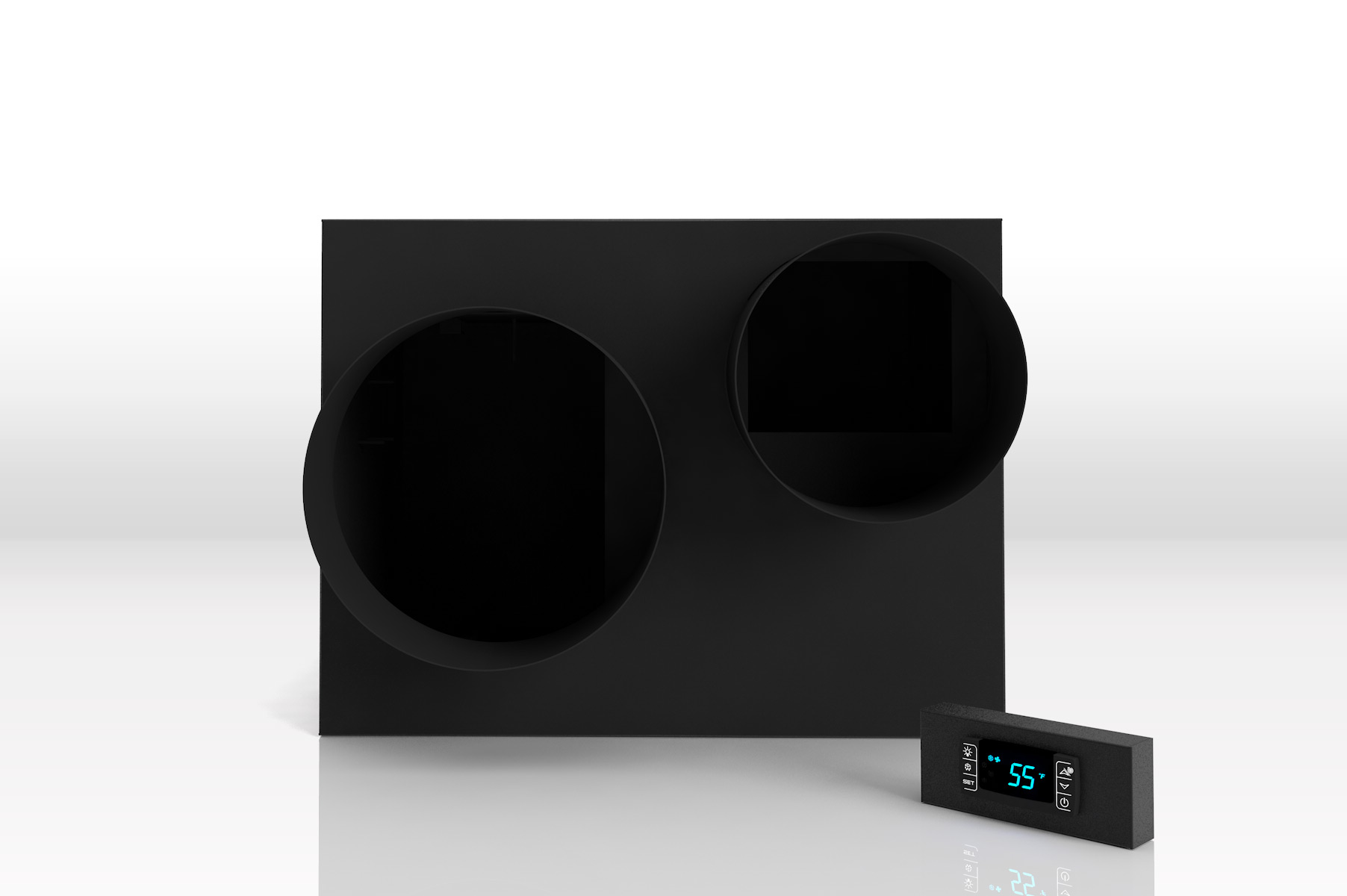

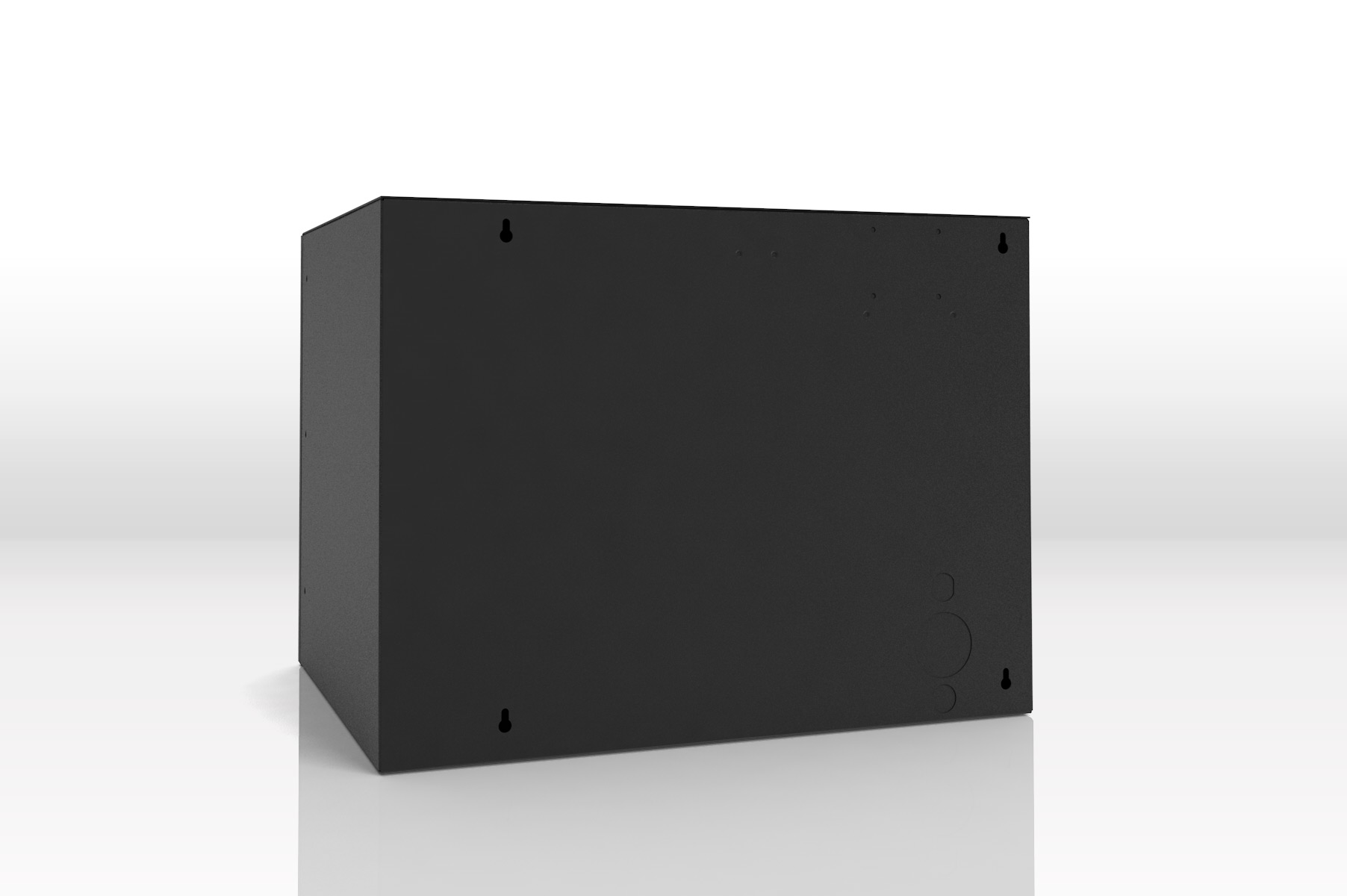

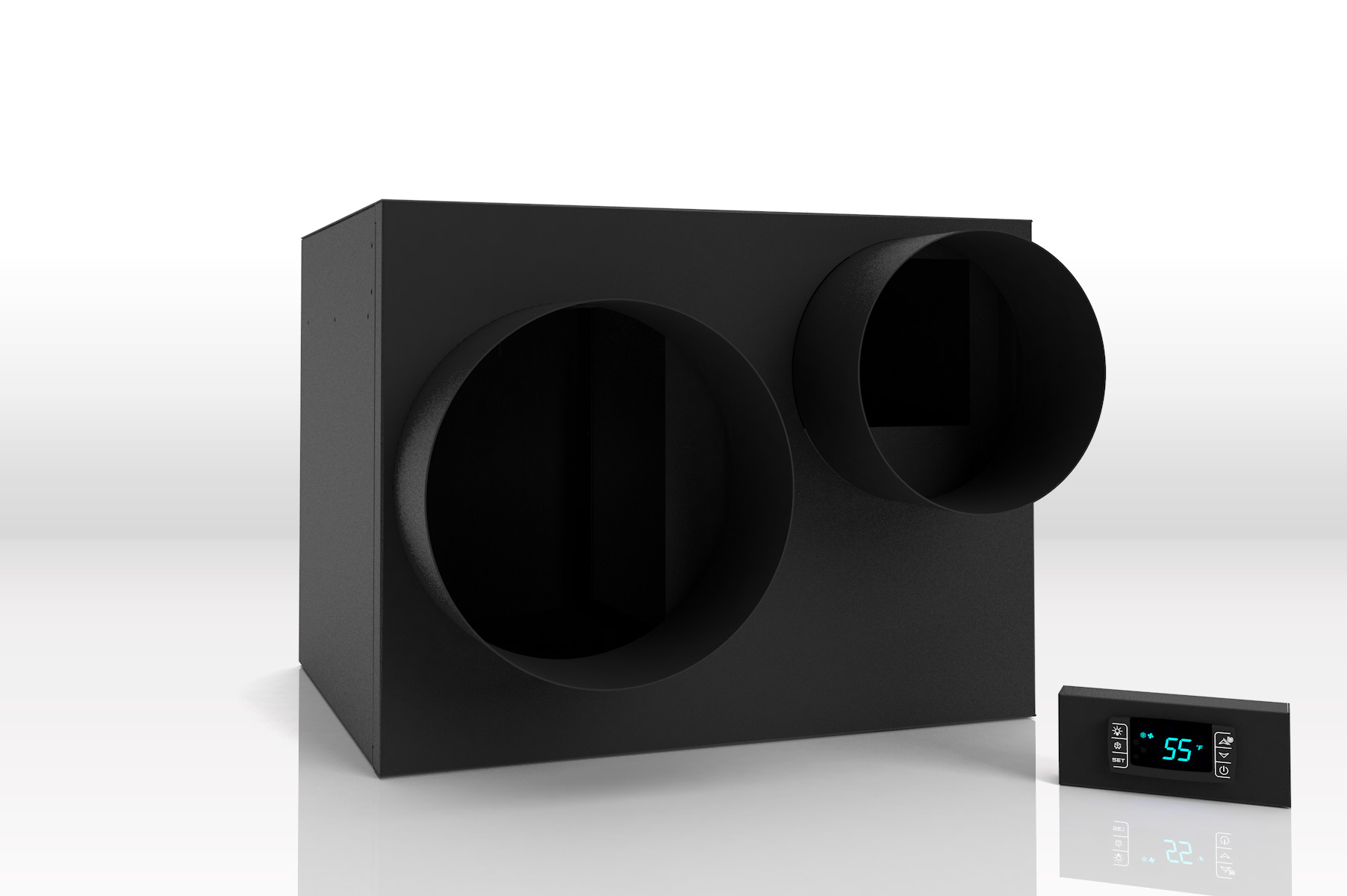

WhisperKool Platinum Split 8000 Ducted Wine Cellar Cooling Unit
Features:
Virtually silent operation
Advanced electronic display
Liquid bottle probe
Energy saving mode
Alarm capabilities
Flexible installation
55°F temperature differential
Condensing unit can be placed outdoors w/optional housing
Pump down system for longer compressor life*
BTUh Rating:
There are circumstances in which a cellar design may require a larger unit due to some existing design restrictions. There are several factors such as glass, stone, concrete, etc. which will seem adequate but do not offer the insulation capacity required to maintain the optimum environment. We recommend purchasing a unit with a larger capacity to compensate for the design limitations. Please utilizing our Cellar Wizard in order to ensure you are selecting the proper cooling unit for your application. Under sized cooling units can lead to pre-mature failure and/or prevent the system from reaching the desired set temperature. As a result they are not covered under warranty.
*Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars.
Note: The systems do not include a line set.
Cold Weather Start Kit:
Introducing the Cold Weather Start Kit by WhisperKOOL. This kit was designed exclusively for our split-systems where the condensing unit will be installed in extremely cold environments. Our split systems are designed to be adaptable to almost any install, as the condensing unit can be located in a variety of locations such as a mechanical room, basement, back yard, or even a rooftop. Our split systems were designed to operate with the condensing unit exposed to temperatures between 20° F and 110° F. However, there are some areas in the country that may drop below 20° F. Due to these conditions WhisperKOOL designed the Cold Weather Start Kit.
So, when the outside temperatures drop, the pressure in the system drops as well. This presents a challenge because our systems operate using a pump down cycle and a low pressure switch to turn the compressor on and off. However, when the temperature drops below 20° F the pressure in the system is too low to start the compressor. The use of an electronic bypass is needed to start the compressor and temperature controlled heaters installed on the receiver are needed to raise the pressure in the system to optimal levels.
The Cold Weather Start Kit will bypass the low pressure switch on startup and keep the pressure in the system high enough to operate correctly for environments as cold as -15° F.
It is important that the cooling system stays operational during cold weather conditions, as heating the house using the central HVAC system will indirectly increase the temperature of the wine cellar. This kit will ensure that the cooling system will continue to operate efficiently in cold weather environments to maintain an optimal wine storage temperature.
Option Details:
Exterior Housing:

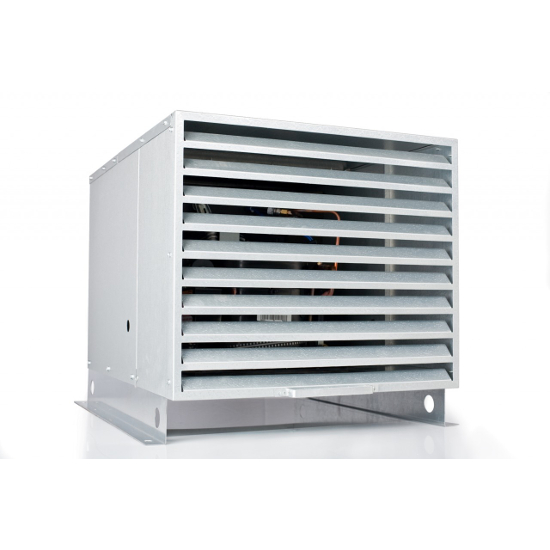

The Exterior Housing protects the condenser portion of the split system from the elements when installed outdoors.
Specifications:
Cellar Size: 2000 cu. ft
dBA: Evaporator: 55 Decibels
Condenser: 65 Decibels
Dimensions: Evaporator: 23.75"W x 15.5"H x 22.5"D
Condenser: 12"W x 13.5"H x 18"D
Weight: Evaporator: 57lbs
Condenser: 66lbs
AMPS (starting/running): Evaporator: 2/1
Condenser: 18/9
Installation: Evaporator can be installed up 25 duct feet from the cellar; Condenser is installed up to 100 line ft. away
Temp. Delta: 55°F temperature differential
Thermostat: Digital Control Display
Warranty:
A limited 2-year parts and labor
Virtually silent operation
Advanced electronic display
Liquid bottle probe
Energy saving mode
Alarm capabilities
Flexible installation
55°F temperature differential
Condensing unit can be placed outdoors w/optional housing
Pump down system for longer compressor life*
BTUh Rating:
There are circumstances in which a cellar design may require a larger unit due to some existing design restrictions. There are several factors such as glass, stone, concrete, etc. which will seem adequate but do not offer the insulation capacity required to maintain the optimum environment. We recommend purchasing a unit with a larger capacity to compensate for the design limitations. Please utilizing our Cellar Wizard in order to ensure you are selecting the proper cooling unit for your application. Under sized cooling units can lead to pre-mature failure and/or prevent the system from reaching the desired set temperature. As a result they are not covered under warranty.
*Pump down systems are integrated into the design of our split systems to provide our customers with the most professional and reliable split cooling systems for wine cellars.
Note: The systems do not include a line set.
Cold Weather Start Kit:
Introducing the Cold Weather Start Kit by WhisperKOOL. This kit was designed exclusively for our split-systems where the condensing unit will be installed in extremely cold environments. Our split systems are designed to be adaptable to almost any install, as the condensing unit can be located in a variety of locations such as a mechanical room, basement, back yard, or even a rooftop. Our split systems were designed to operate with the condensing unit exposed to temperatures between 20° F and 110° F. However, there are some areas in the country that may drop below 20° F. Due to these conditions WhisperKOOL designed the Cold Weather Start Kit.
So, when the outside temperatures drop, the pressure in the system drops as well. This presents a challenge because our systems operate using a pump down cycle and a low pressure switch to turn the compressor on and off. However, when the temperature drops below 20° F the pressure in the system is too low to start the compressor. The use of an electronic bypass is needed to start the compressor and temperature controlled heaters installed on the receiver are needed to raise the pressure in the system to optimal levels.
The Cold Weather Start Kit will bypass the low pressure switch on startup and keep the pressure in the system high enough to operate correctly for environments as cold as -15° F.
It is important that the cooling system stays operational during cold weather conditions, as heating the house using the central HVAC system will indirectly increase the temperature of the wine cellar. This kit will ensure that the cooling system will continue to operate efficiently in cold weather environments to maintain an optimal wine storage temperature.
Option Details:
Exterior Housing:
The Exterior Housing protects the condenser portion of the split system from the elements when installed outdoors.
Specifications:
Cellar Size: 2000 cu. ft
dBA: Evaporator: 55 Decibels
Condenser: 65 Decibels
Dimensions: Evaporator: 23.75"W x 15.5"H x 22.5"D
Condenser: 12"W x 13.5"H x 18"D
Weight: Evaporator: 57lbs
Condenser: 66lbs
AMPS (starting/running): Evaporator: 2/1
Condenser: 18/9
Installation: Evaporator can be installed up 25 duct feet from the cellar; Condenser is installed up to 100 line ft. away
Temp. Delta: 55°F temperature differential
Thermostat: Digital Control Display
Warranty:
A limited 2-year parts and labor
Manufacturer: WhisperKOOL
Specs/Warranty: Manufacturer's Warranty A limited 2-year/5-year compressor warranty is offered with all self-contained cooling units at their date of purchase. A limited 2-year warranty is offered with all split systems. This warranty does not start or become valid
Manufacturer Part Number: Platinum Split 8000 Ducted
Custom Stock Status: Out of Stock
Return Policy: All Sales Final
Specs/Warranty: Manufacturer's Warranty A limited 2-year/5-year compressor warranty is offered with all self-contained cooling units at their date of purchase. A limited 2-year warranty is offered with all split systems. This warranty does not start or become valid
Manufacturer Part Number: Platinum Split 8000 Ducted
Custom Stock Status: Out of Stock
Return Policy: All Sales Final
